LPG sampling systems help you safely and effectively sample liquefied petroleum gas (LPG) and other gases with high vapor pressures. But even the most reliable LPG sampling solution will need ongoing maintenance and service. When your LPG samplers aren’t working properly, these troubleshooting tips can keep your system running smoothly.

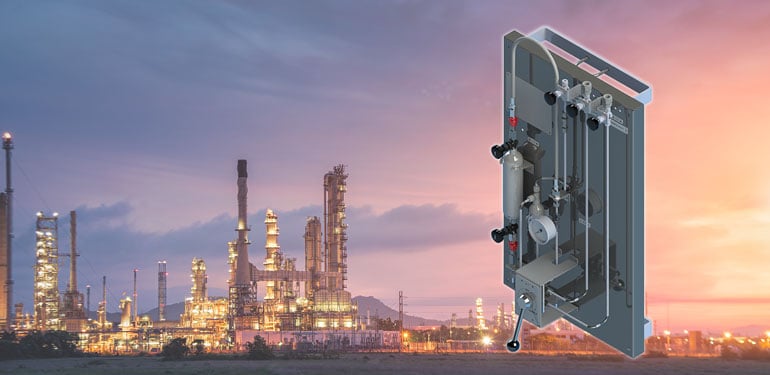

A standard liquefied petroleum gas system has one process inlet, one process outlet and one vapor recovery/flare outlet. It can often be modified to include a sample cooler if it’s used in high-temperature service, and can also include a sight flow indicator to verify flow and level. Regardless of standard or modified, an LPG system takes regular operation and maintenance.
Operating your lpg sampler
Prior to utilizing your system, following these general operational tips will provide you with clear indication points to identify potential issues.
- Ensure process supply and return block valves are open allowing process to flow through the system
- Install the sample cylinder using quick connects (if outage tube is installed on a cylinder, it should be at the top) and open cylinder valves
- Move sample valve from bypass/equalize to sample
- Allow flow through cylinder (if system has no return, the vent valve must be slowly opened to allow flow)
- Close vent valve, if opened for flow
- Move sample valve from sample to bypass/equalize and close cylinder valves
- Open vent/purge valve to allow system depressurization
- Close vent/purge valve once pressure holds at 0
- Remove cylinder from the system
Troubleshooting Your LPG Sampling System
| Problem | Solution |
| There's no sample/ The cylinder is empty |
|
| The system doesn't depressurize |
|
| There's no outage (if required) |
|
Maintain your investment with routine maintenance
As with all sampling equipment, maintaining maximum uptime and efficient sampling processes requires routine maintenance inspection. It is recommended to follow these steps to ensure continued reliability.
- Inspect full system visually for defects or leaks.
- Inspect gauges and sight flow indicator for clarity and functions.
- Verify valve orientations are proper for taking a sample.
- Take sample.
- Note any issues in the process.
- Verify vent valve and check valve function and orientation.
- Verify quick connect function on each visit. Change quick connect annually or as needed.
- Verify Flex hose integrity and change flex hose every two years or as needed.
